Cocktail Arcade Cabinet

Original post is on the french forum insert coins

I finally sold it in 2021. No new arcade project for now, but I'd like to work on a two players mini-Karateco or alike one day.

Initial setup

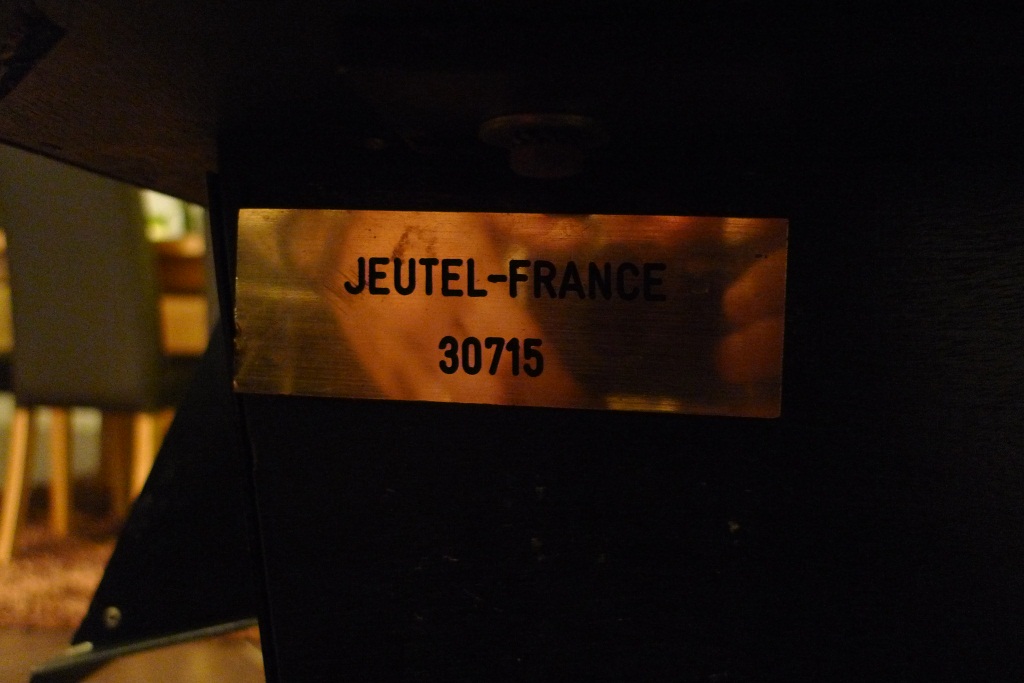

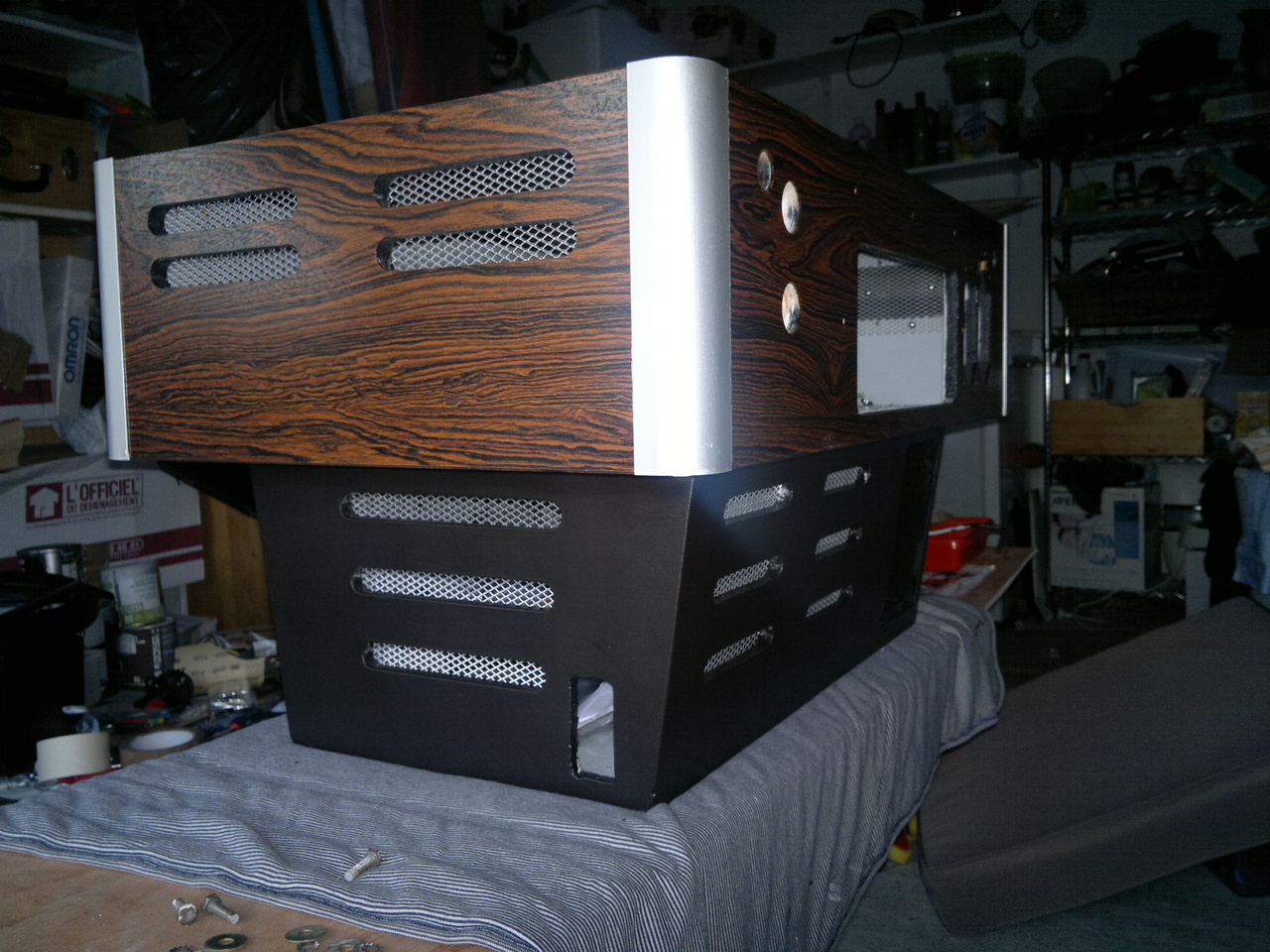

It's a generic Arkanoid-style Jeutel cocktail cabinet.

Overall, the wood veneer isn't too damaged.

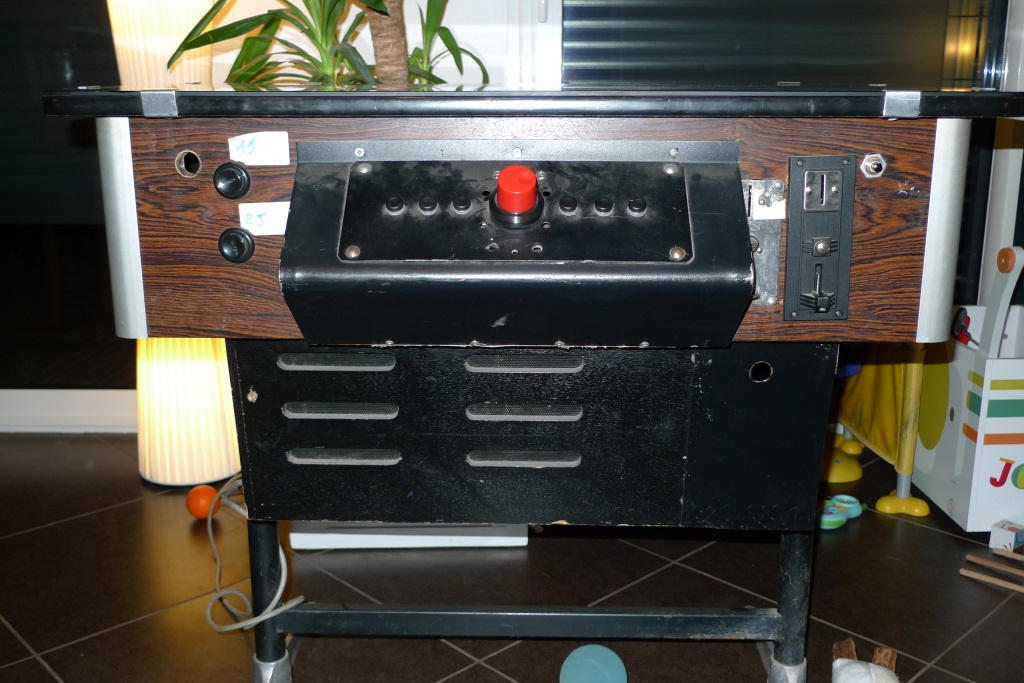

Front view:

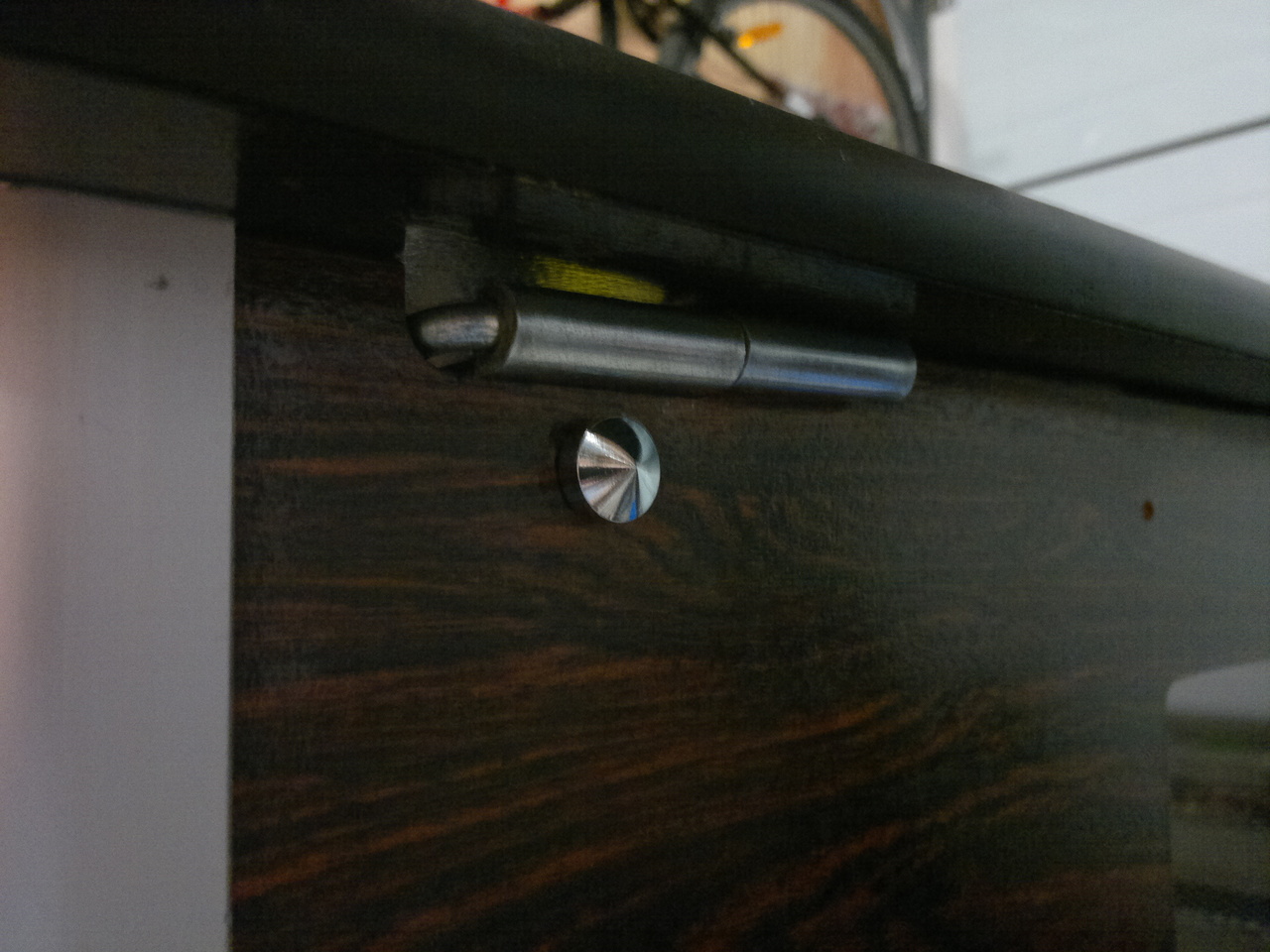

On the left, a lock is missing.
On the right, you can see the coin slots: the first for 5-franc coins, the second, I think, for 2-franc coins (a 1-euro coin doesn't fit easily...).
On the far right, a "credit +5" button replaces the lock on the right.

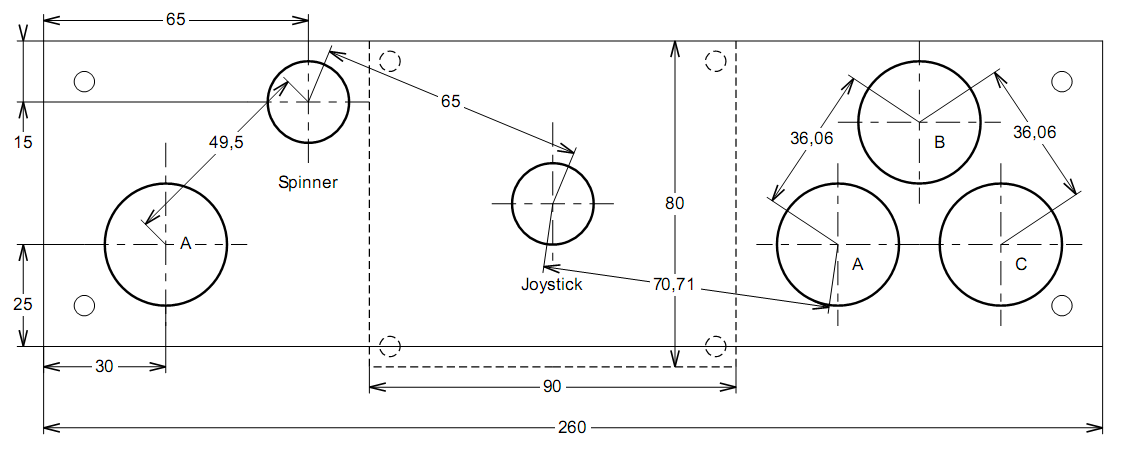

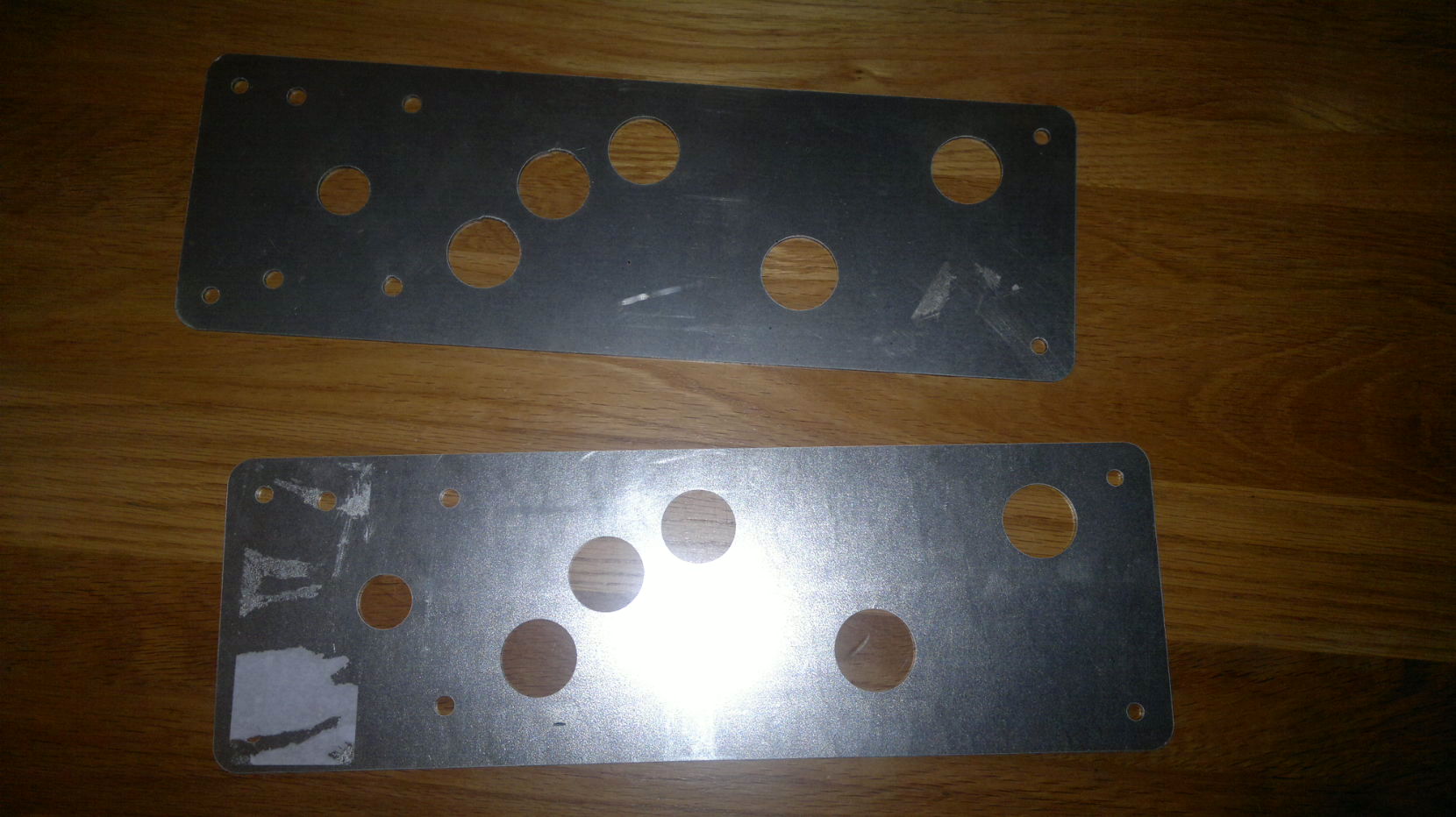

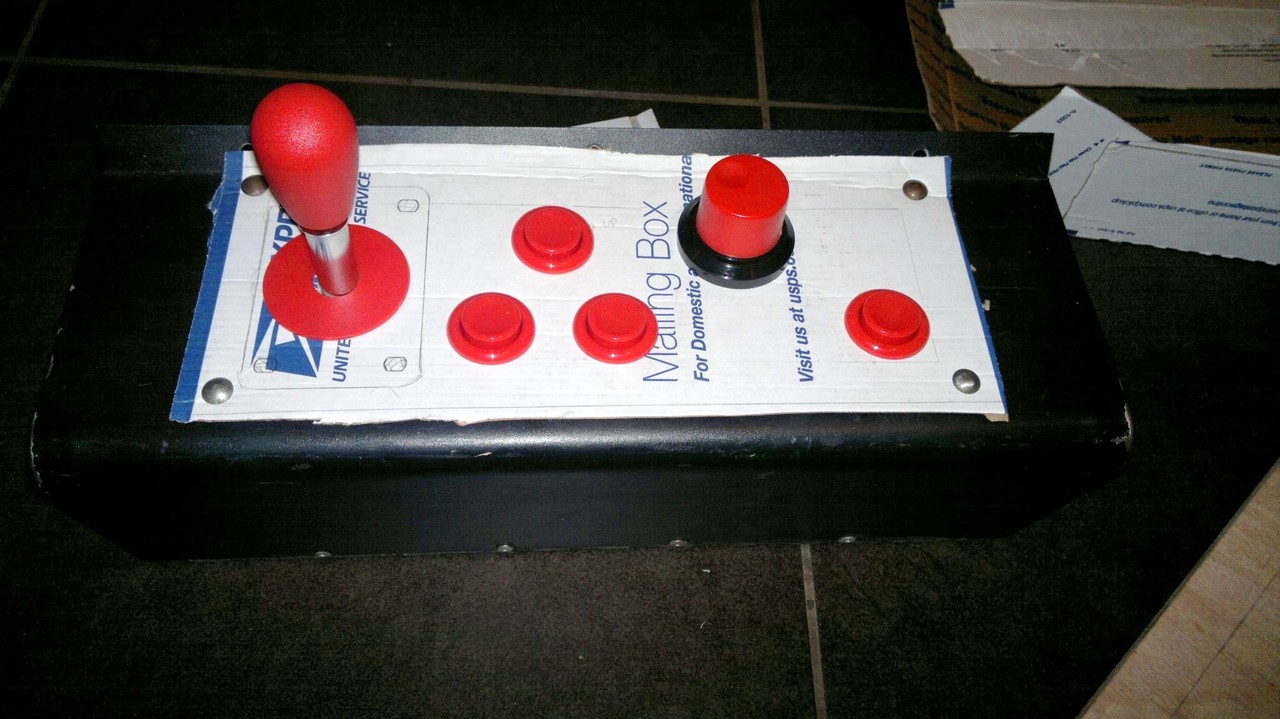

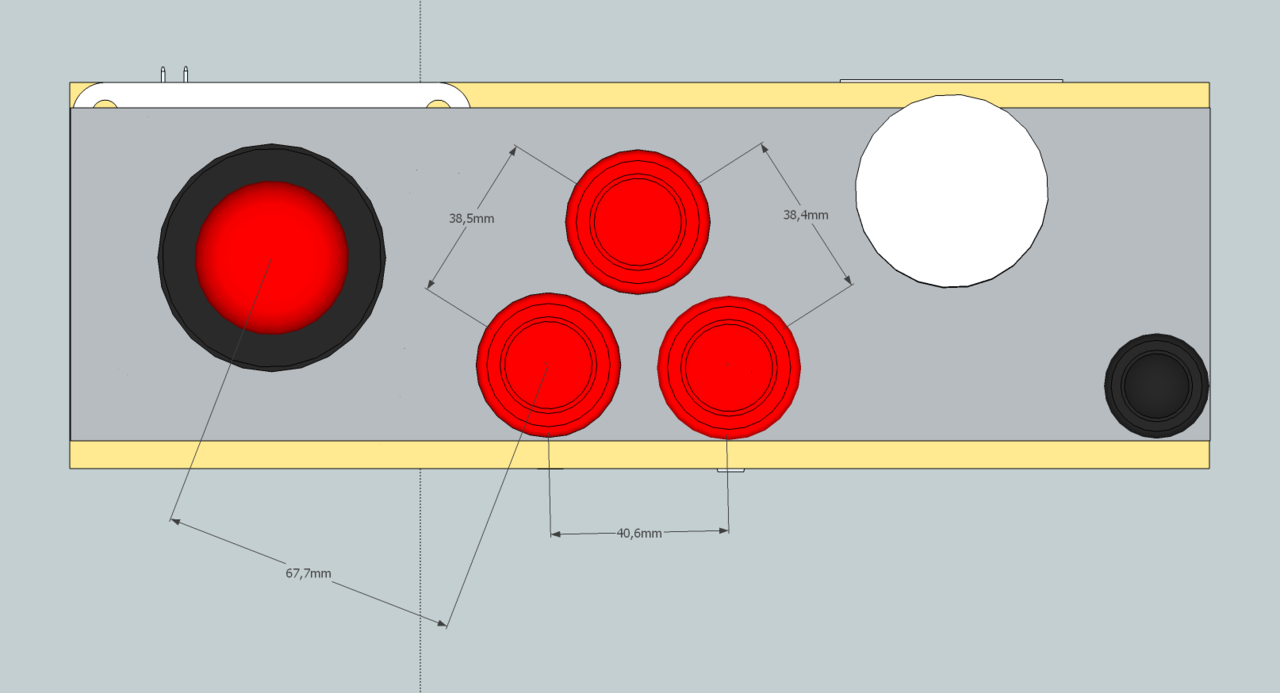

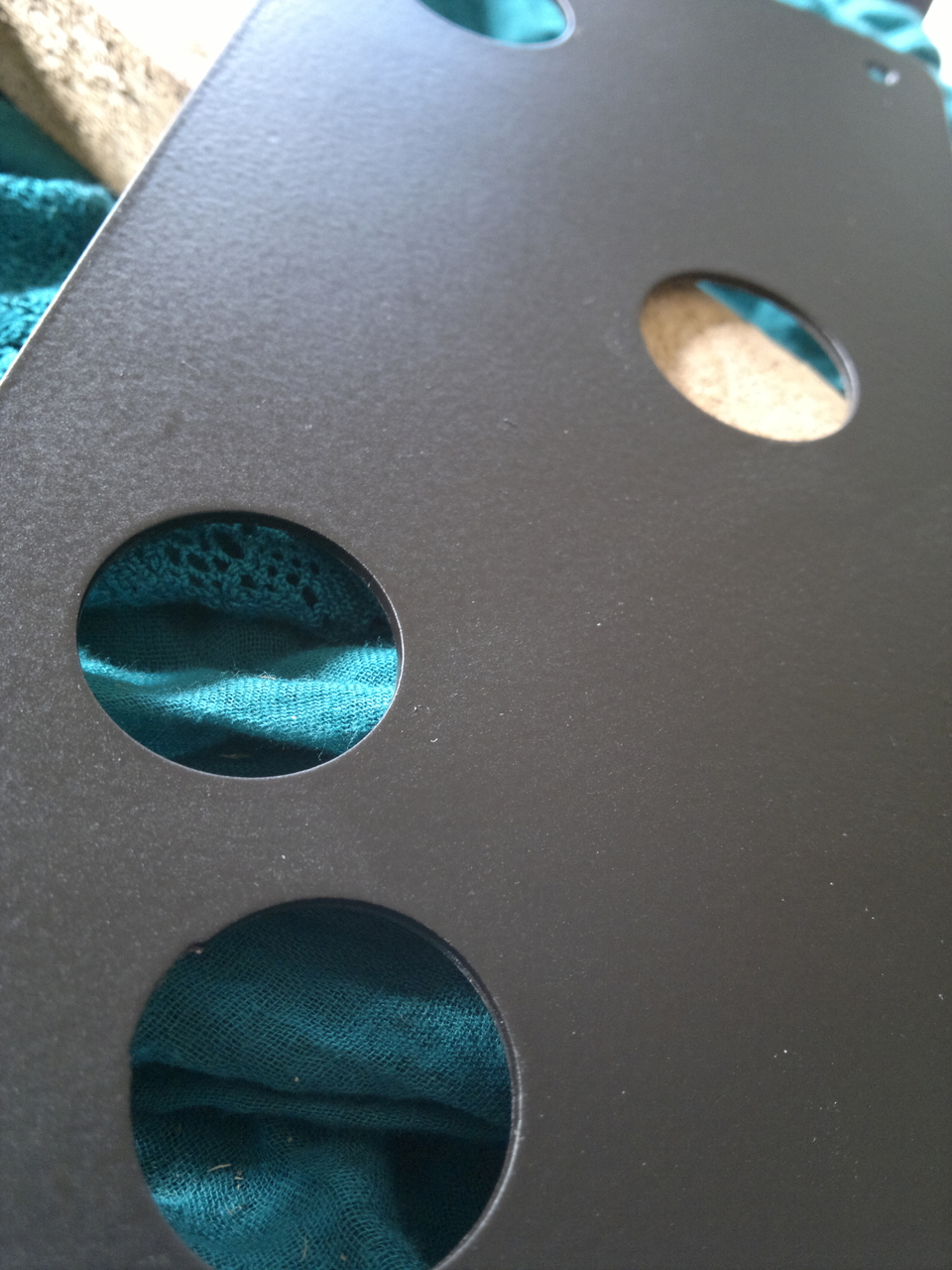

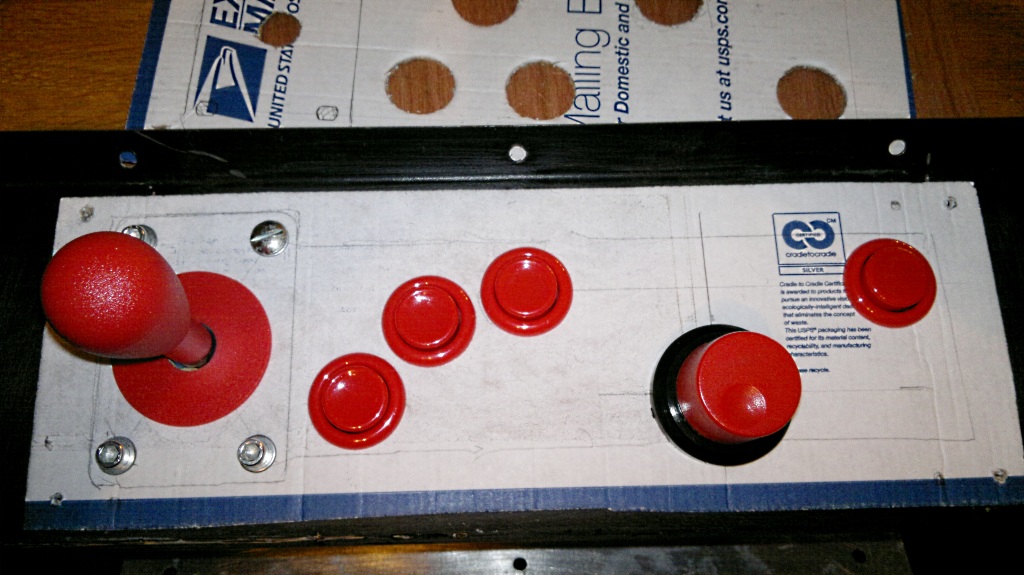

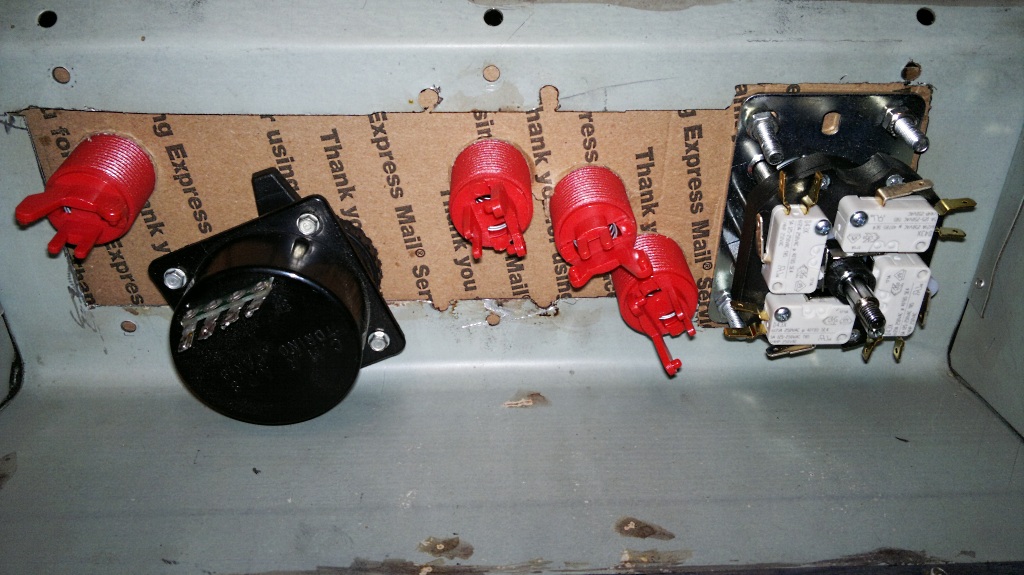

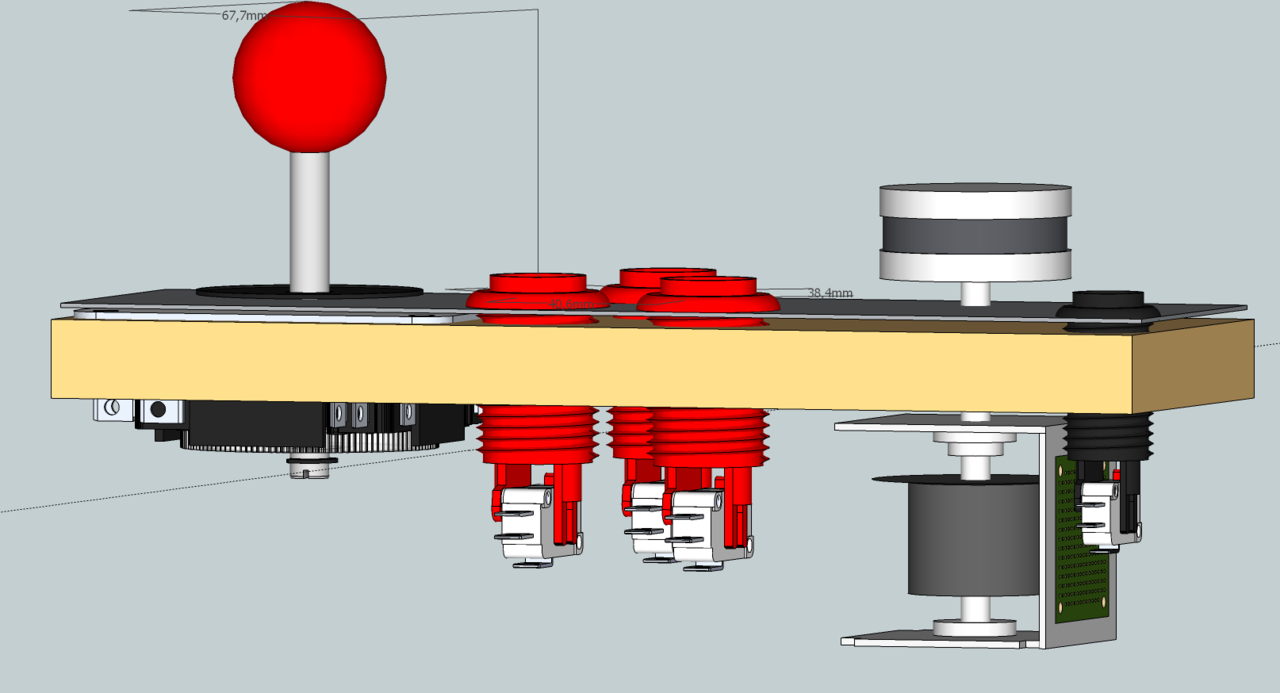

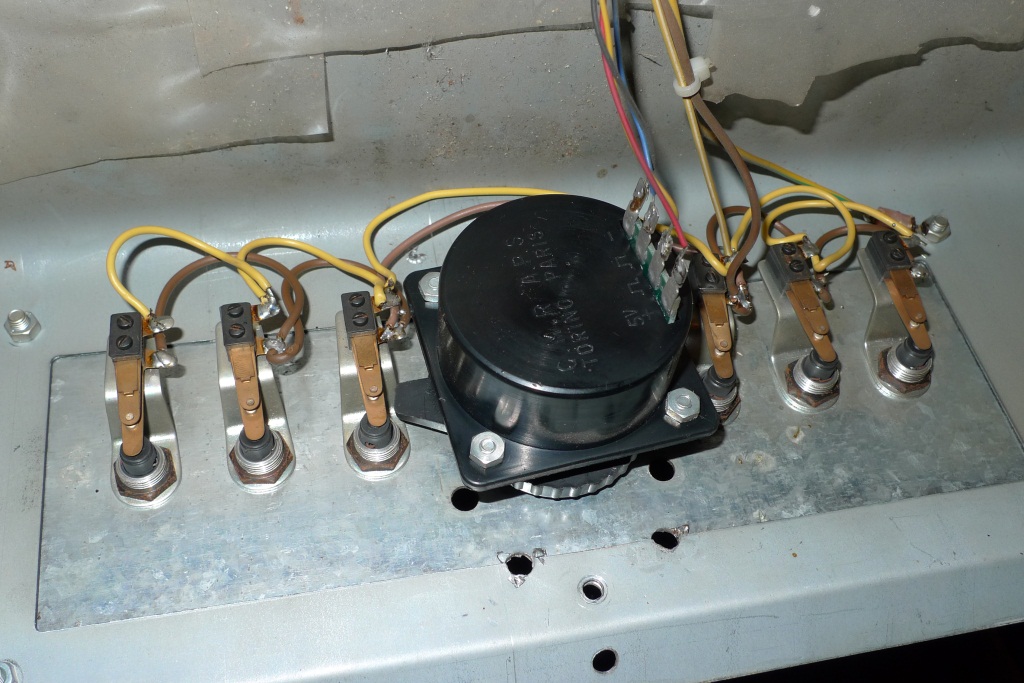

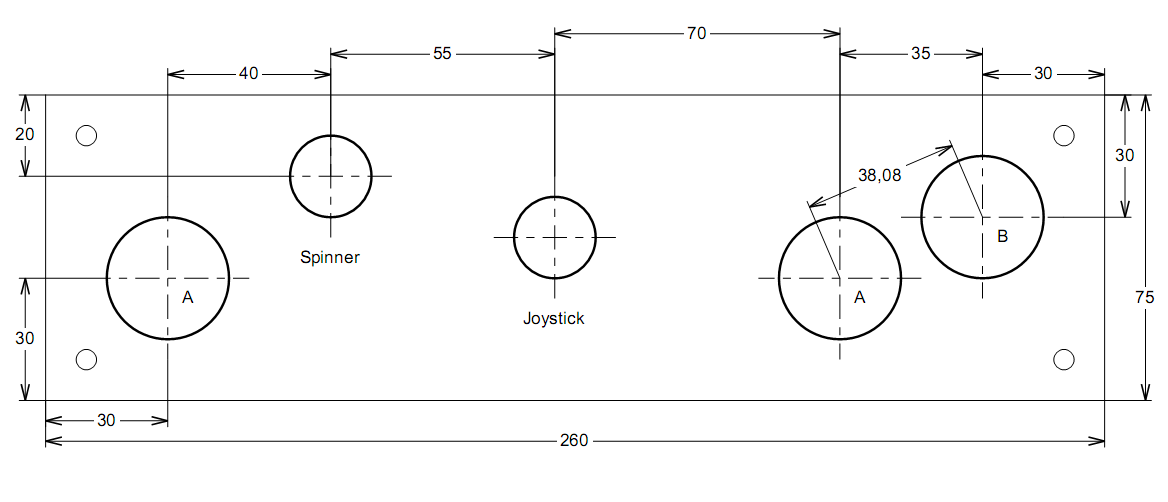

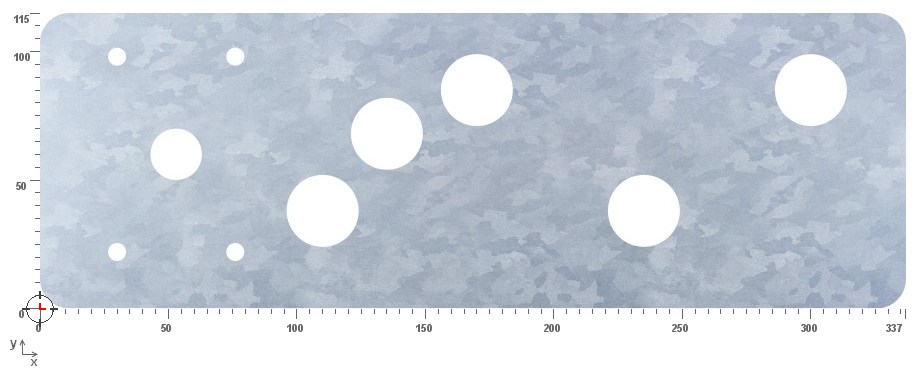

I opened the player 1 control panel; the slatted buttons are all wired to the same two wires (that's a lot of buttons just for Arkanoid), and the spinner is loose. This plate will be replaced for a layout with a joystick + spinner + 3 buttons.

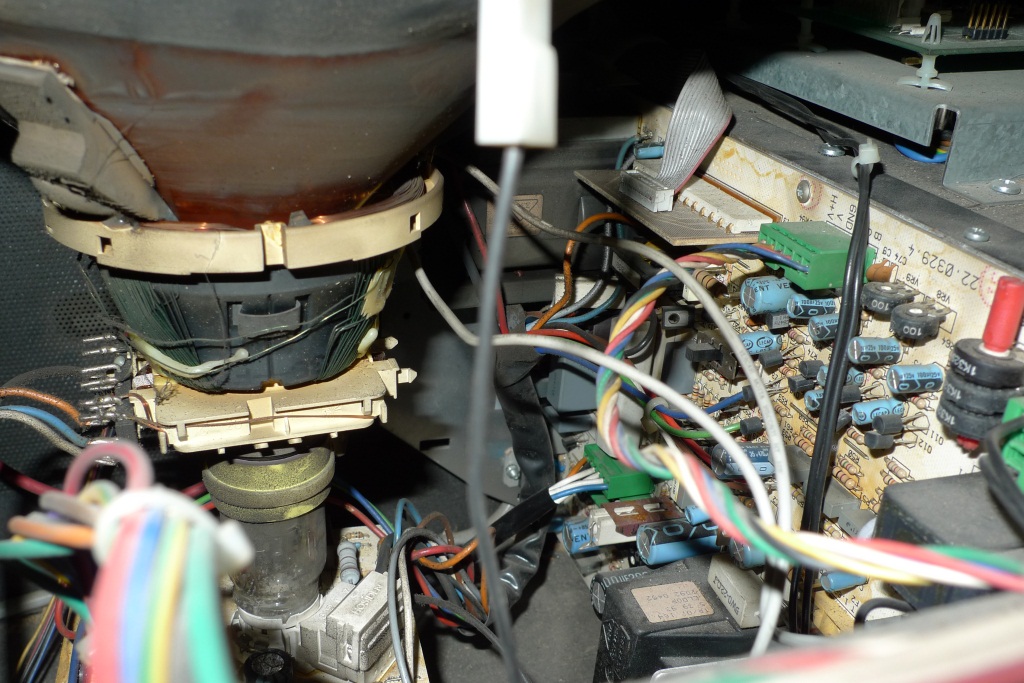

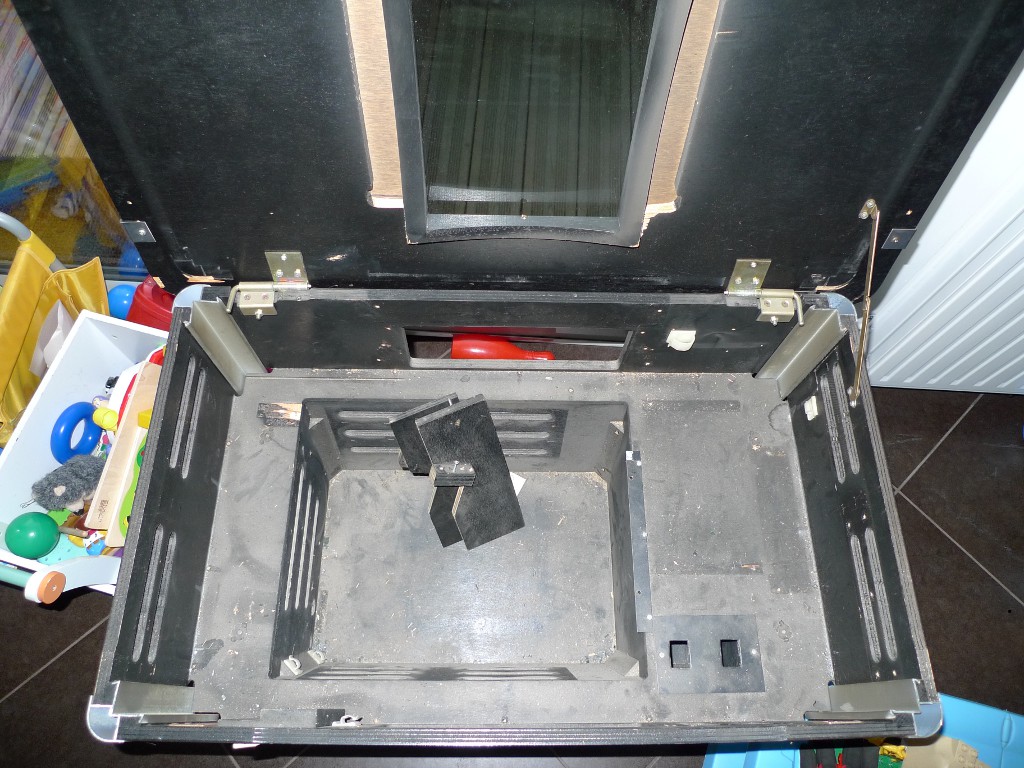

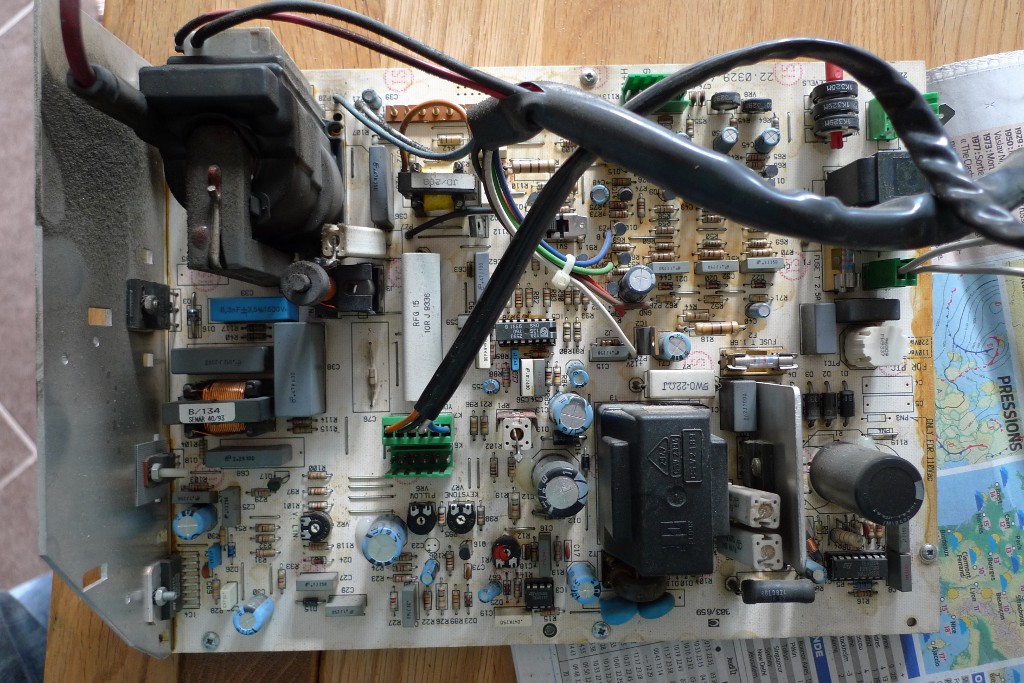

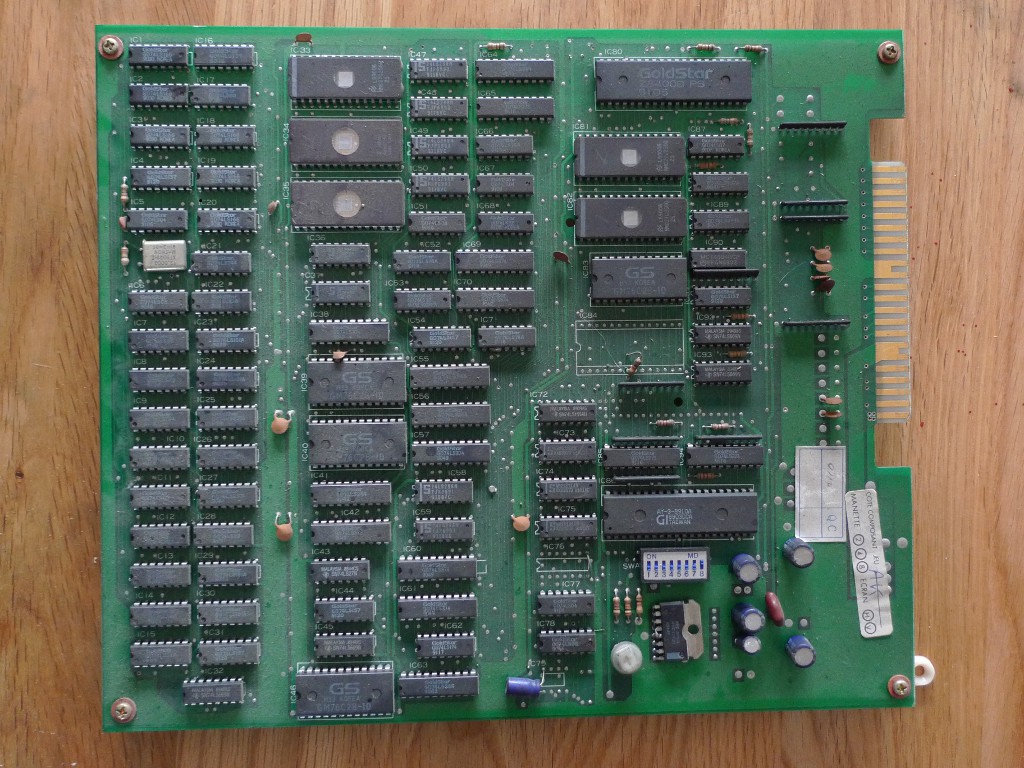

Inside, we have a dusty PCB and everything that goes with the screen (the screen is marked: I can see the game over and the Arkanoid title once it's turned off).

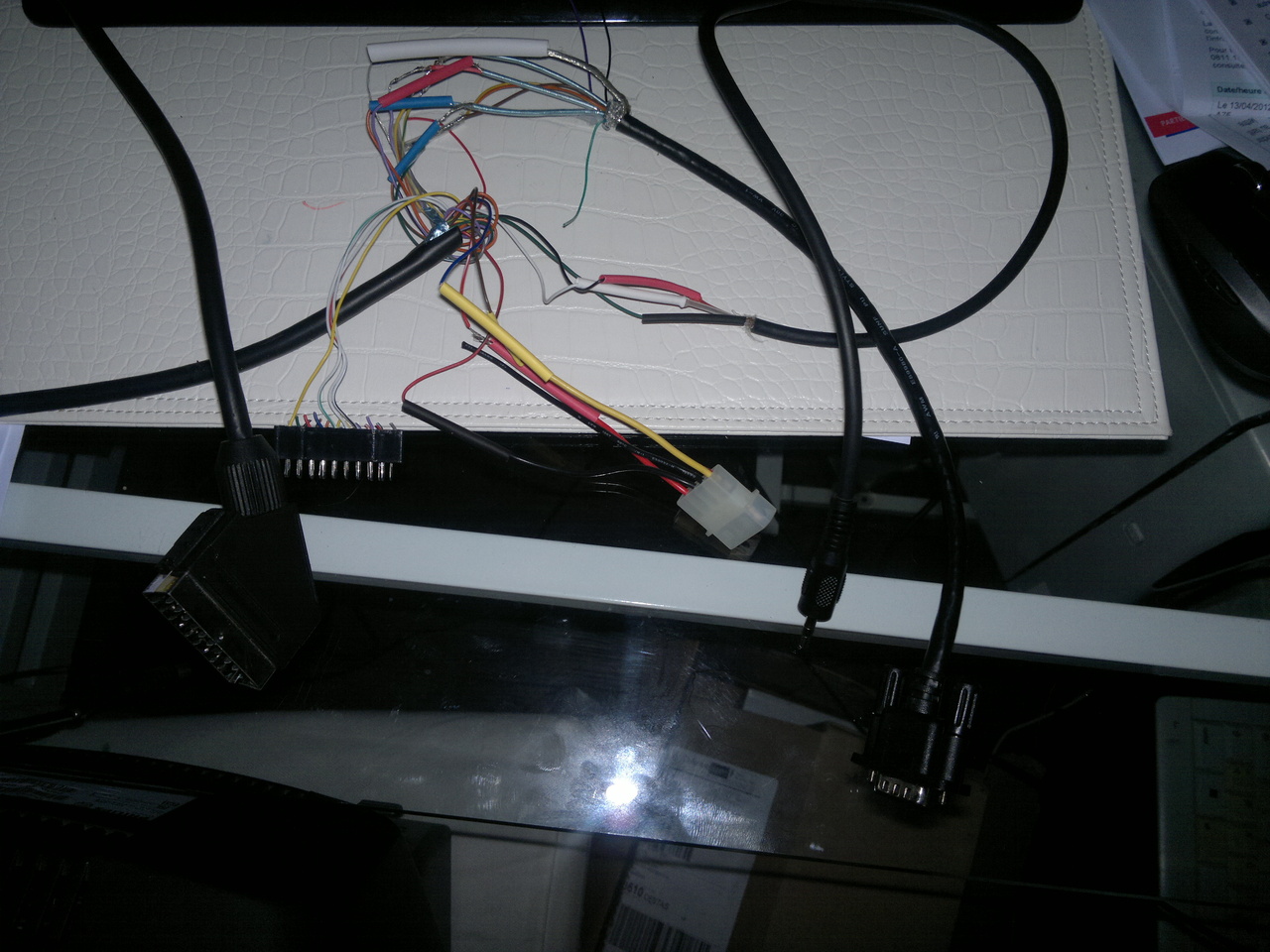

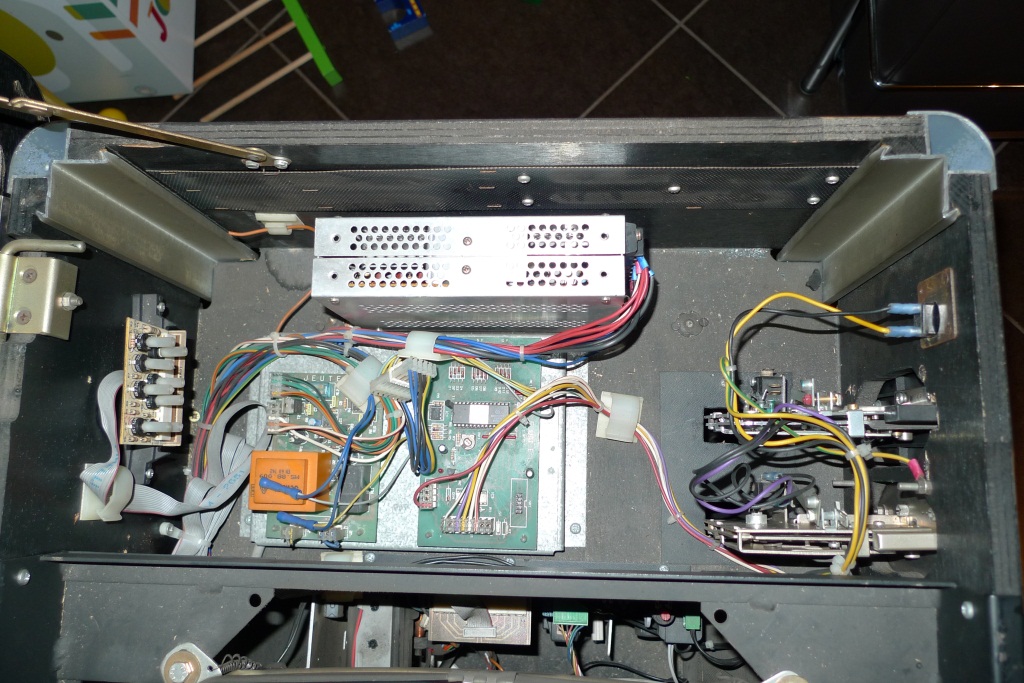

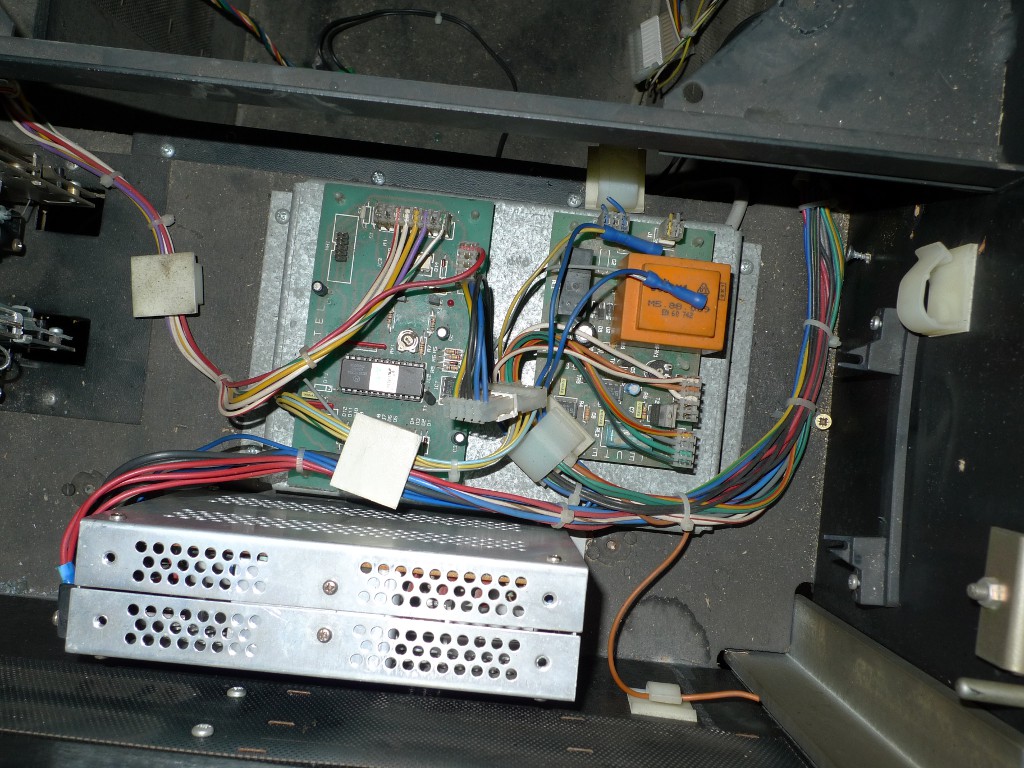

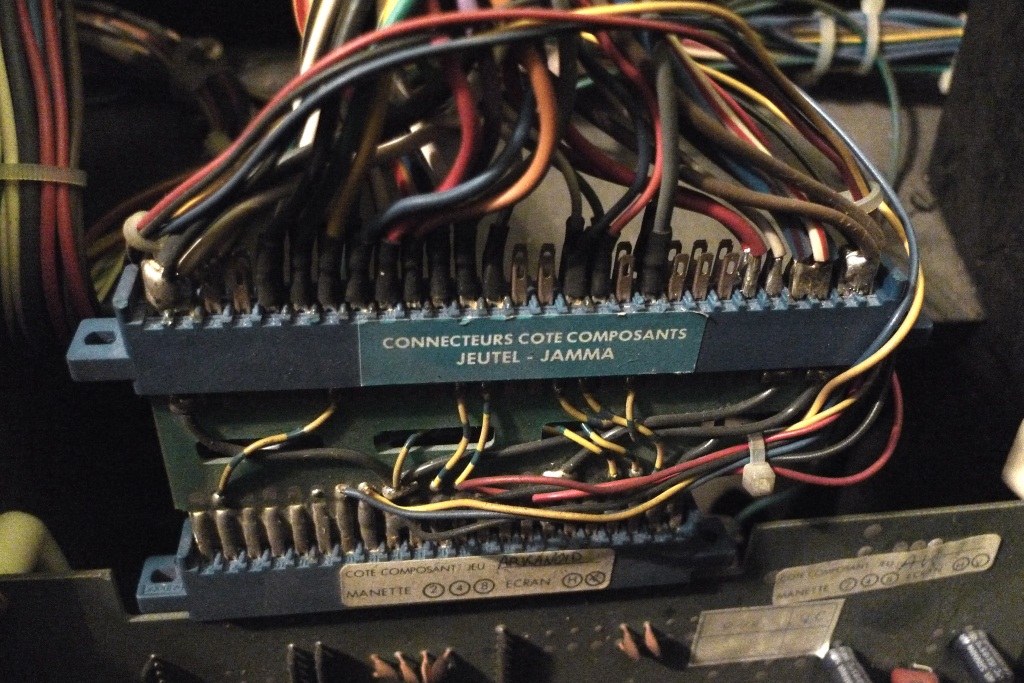

Power supply + switching + screen settings and a Jamma -> Jeutel connector

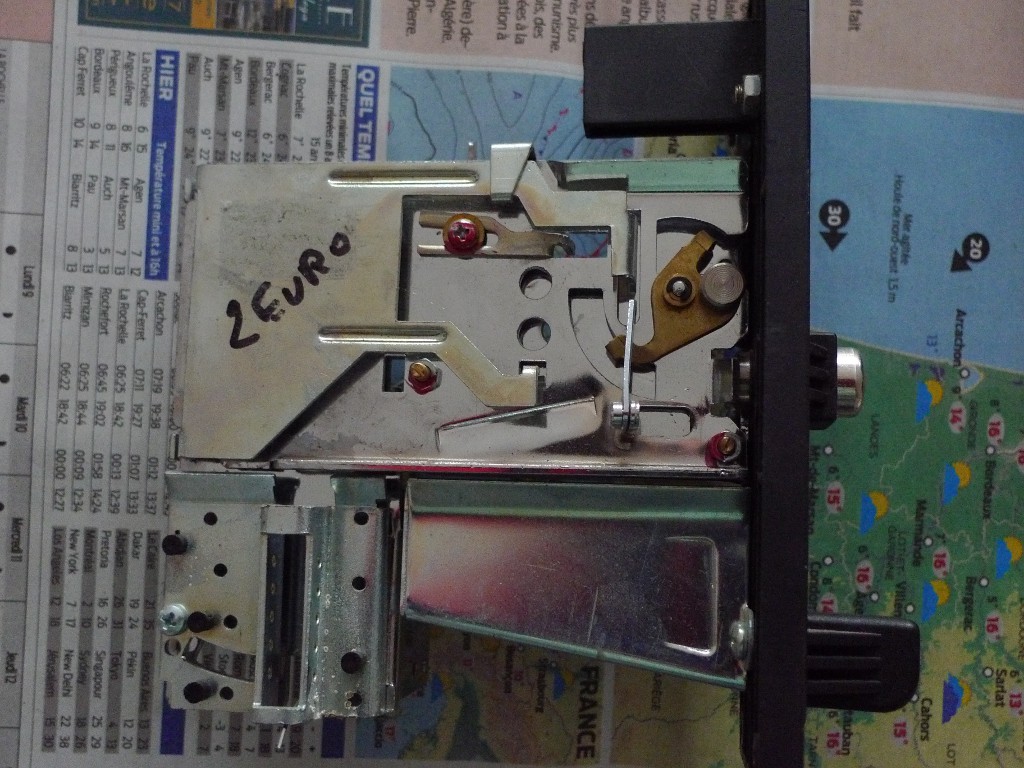

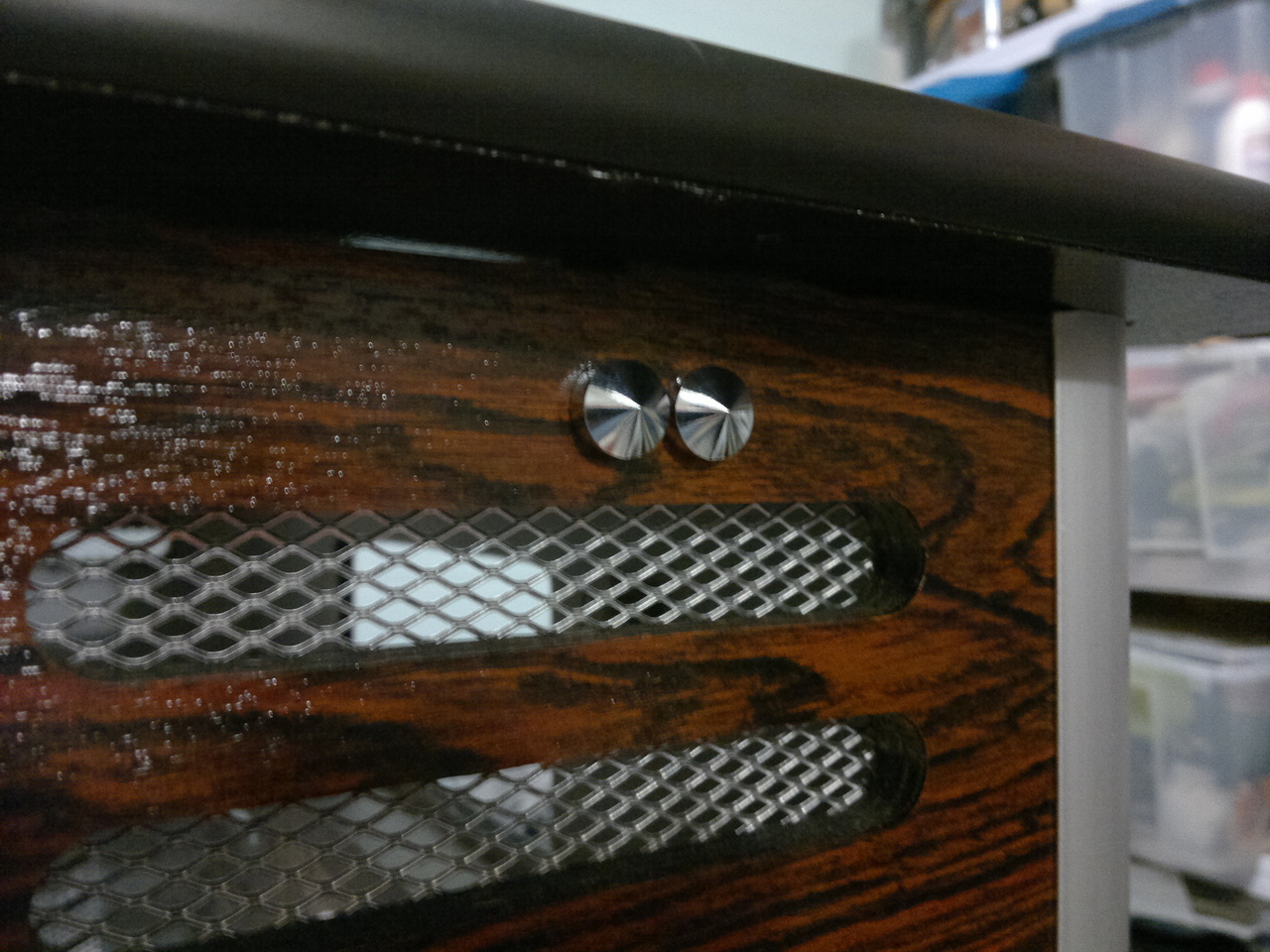

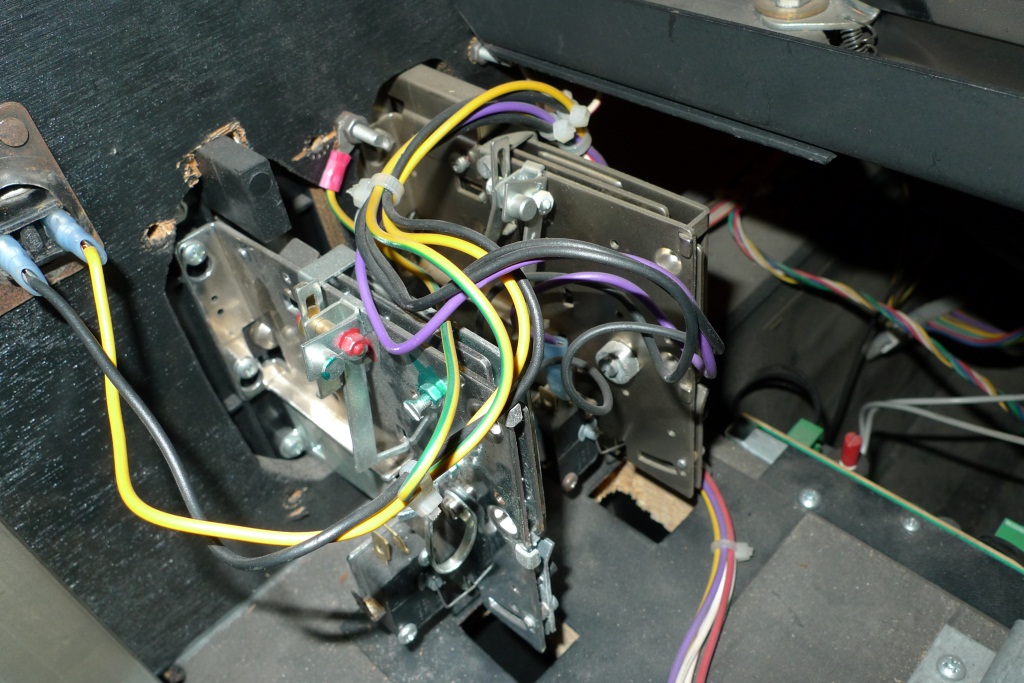

The coin selectors seen from the inside

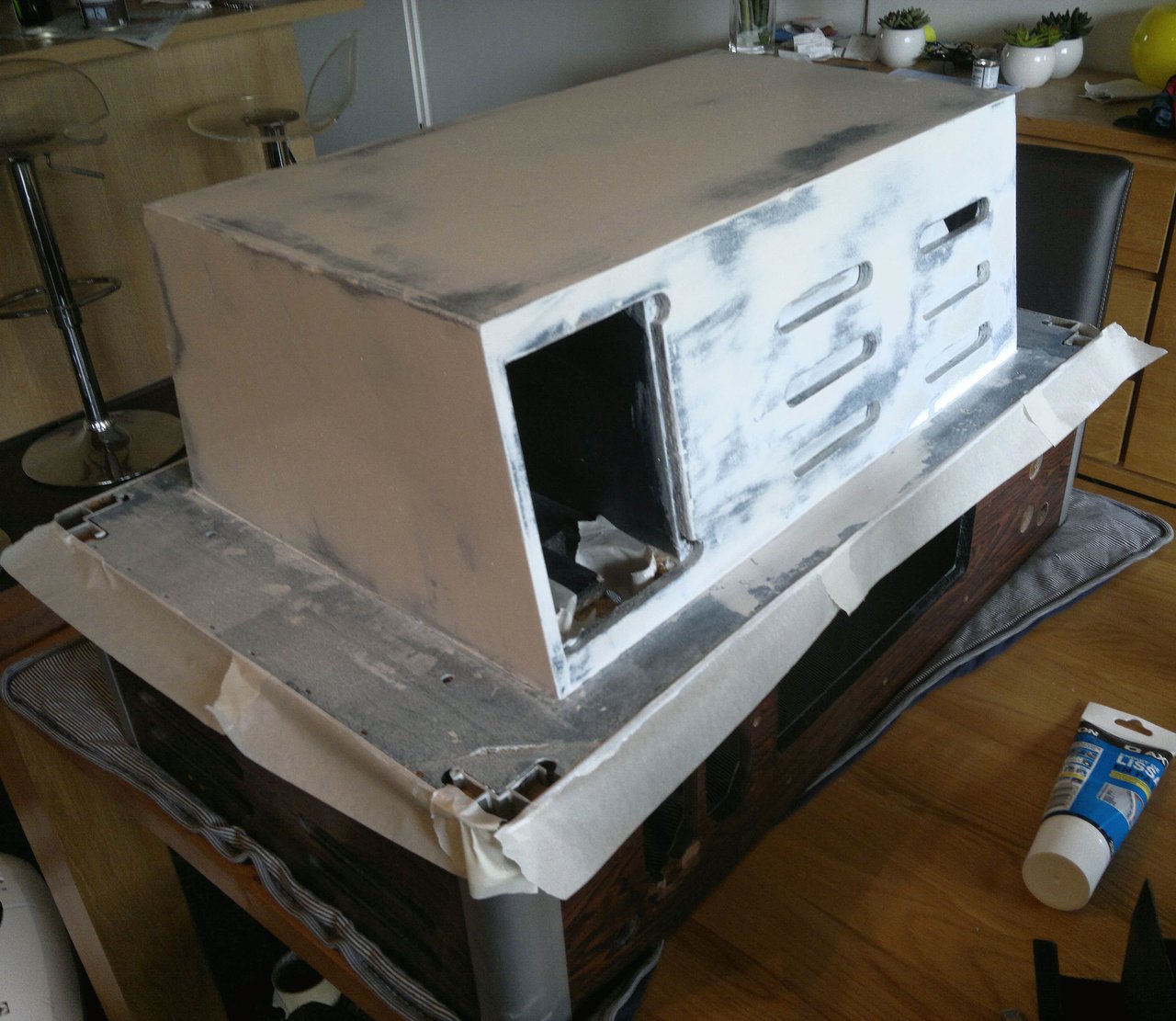

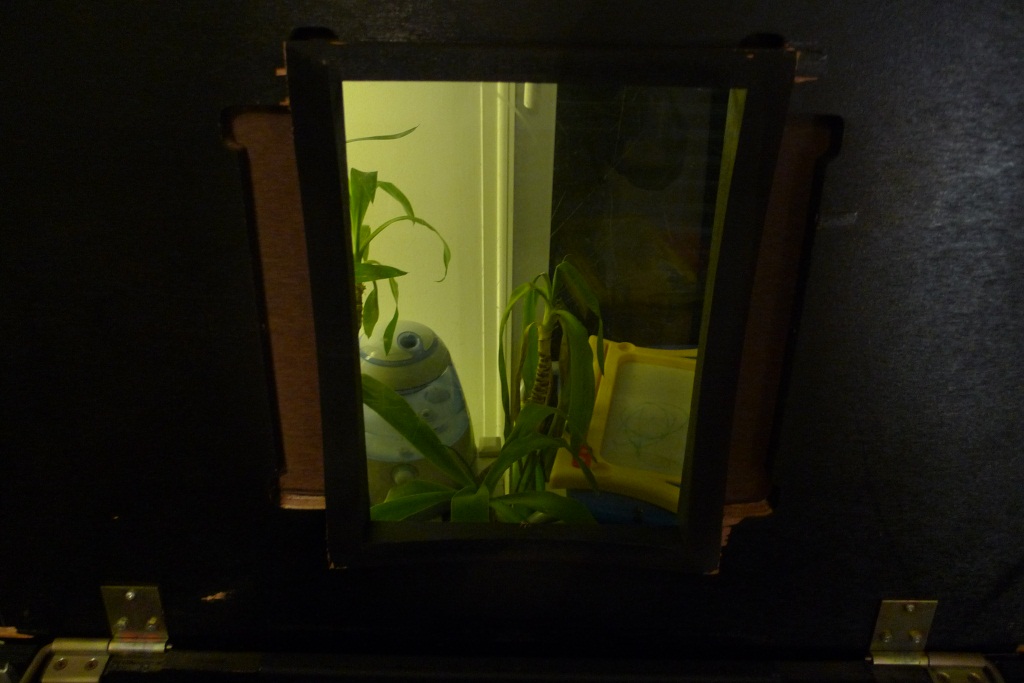

The top panel is already cut out for horizontal positioning of the screen as an option.

My son playing the Arknoid bootleg:

Dimensions

Locker hole diameter: 21 mm
Dimensions of the removable part of the original control panel: 300 x 116 mm (usable surface area: 260 x 76 mm)
Thickness of the removable part of the original control panel: 1 mm
Tabletop dimensions: 880 x 550 mm
Wooden tabletop thickness: 16 mm
Glass dimensions: 880 x 550 mm
Original glass thickness: 5 mm
Height of the upper part of the cabinet: 208 mm
Height of the lower part of the cabinet: 230 mm
Maximum height of the cabinet (with legs): 810 mm
Min. height of the cabinet (with legs): 622 mm
